PLANS AND DRAWINGS

House Site Plans:

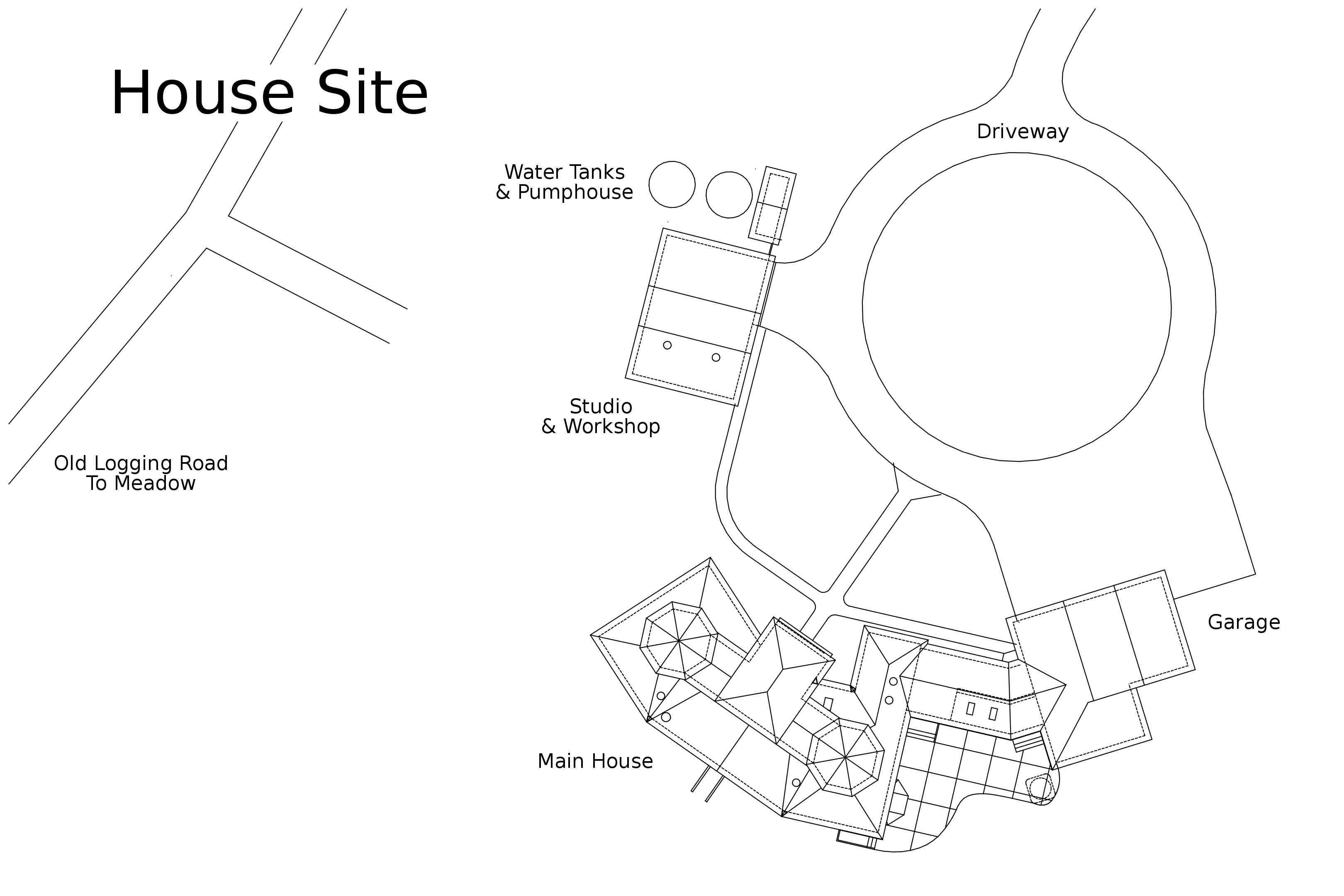

Shown here is the house site with the Main House and Garage, Studio/Workshop Building and the Pumphouse.  The circle at the end of the driveway is 40 feet in diameter.


housing site plans
PLEASE NOTE:  These plans were drawn as part of our design process.  Minor changes may have been made during construction.  These are not "as built" drawings.
